A Question of Perspective: Fixed and Mobile Football Cameras

A football camera may seem like a simple tool at first glance, but its importance to a team’s success should not be underestimated. In this post, we take an in-depth look at the differences and similarities between fixed and mobile cameras for recording and analysing football training sessions and matches.

Fixed football cameras

Advantages

Stability and continuity: Fixed cameras provide a stable and constant perspective, ideal for capturing tactical formations across the entire field.

Coverage: Wide-angle lenses allow fixed cameras to capture the entire field, which is crucial to understanding the dynamics of the game.

Accessories: Once installed and set up, a permanently mounted camera does not require additional, often expensive accessories such as a tripod. There is also no need to recharge it every time.

Disadvantages

Lack of flexibility: They are fixed in their orientation and therefore do not offer the possibility of being used for away matches.

Higher installation costs: Fixed cameras can take significantly longer to install and are potentially more expensive than mobile alternatives.

Mobile football cameras

Advantages

Flexibility and adaptation: Mobile cameras let you record wherever the situation calls for it. This enables targeted analysis of specific match situations or players, even in away matches.

Cost-effectiveness: Compared to fixed cameras, mobile options are typically more cost-effective and require less installation effort.

Disadvantages

Stability: They can be damaged by wind, weather or players, especially if the camera is not securely positioned or secured.

Limited coverage: Mobile cameras may struggle to capture the entire field at once, which can be a hindrance when analysing formations.

Similarities

Despite their differences, fixed and mobile football cameras have common goals in analysis:

Image quality: Both options aim for high image quality to provide precise insights into plays, techniques and tactics.

Training improvement: Both fixed and mobile cameras serve the purpose of improving training sessions and tactics, uncovering weaknesses and emphasizing strengths.

Tactical insights: Both options help coaches, analysts and teams gain tactical insights to refine and optimize their strategies.

Whether portable or permanently installed, both options have their advantages. There are numerous options on the market with different features and prices. To find the perfect football camera, you should consider important factors such as image quality, flexibility and cost-effectiveness. When investing in video analysis solutions, it is crucial to consider individual needs and choose a tailored solution. With the right balance between stability and flexibility, football analysis becomes a powerful tool for increasing the tactical brilliance of coaches and teams alike.

How is the zone14 fixed camera system mounted?

zone14 is revolutionising the way clubs at lower levels of the game are able to analyse and improve their performance with an innovative approach to football data. Through the integration of AI and data into the realm of football camera technology with ‘STATS’, clubs are able to access player data through our fixed camera system.

zone14’s easy to use ‘REPLAY’ System allows you to analyse and tag every moment. Furthermore, you no longer have to wait until after the match to begin your analysis. The zone14 ‘LIVE’ Package makes it possible for you to carry out mid-game analysis and broadcast your match to viewers wherever they are in the world. With great commitment to accessibility and accuracy, zone14’s one-time installation and fixed-mounting football camera provides high precision in data and football video capture. Take your football team to the next level all through one camera.

The importance of camera placement

Before delving into the installation process, it’s crucial to understand the best practices for positioning your football camera. Optimal coverage requires strategic placement in the middle of the pitch, approximately 3 metres away from the sideline. The camera should be elevated to 6 metres above ground level to ensure a perfect view for in-depth analysis and recording.

Your partner in setup

Once you have purchased your zone14 football camera system, our dedicated team will be on hand to guide you through the entire set-up process. We will discuss the ideal installation location with you, determine the required cable lengths and arrange a suitable date for the installation. You can rest assured that you are never alone with zone14: you can always rely on our 24/7 support and expert advice.

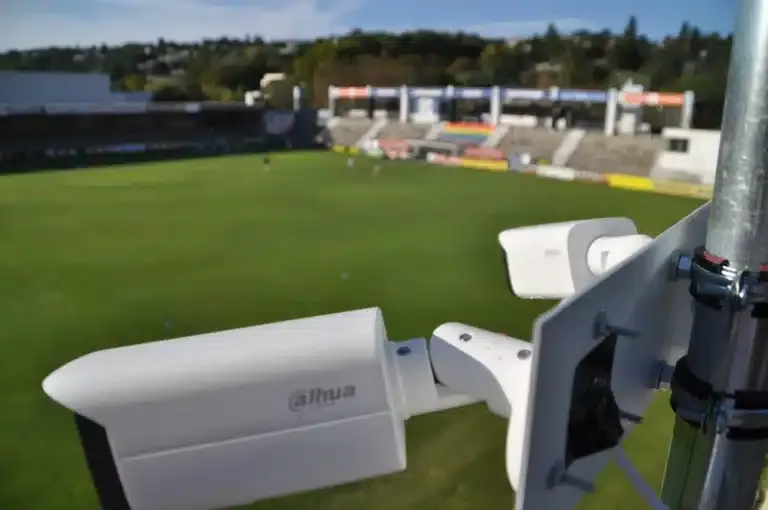

Choosing the right location

Flexibility is always possible with your zone14 camera system. Common locations used by our clubs include floodlight poles, grandstand roofs, normal poles, and even in some cases more unique options like sturdy trees. Each location can effectively record matches and training sessions. Consider your ground layout and power accessibility when selecting the perfect spot. Our team will be there to assist you in making this crucial decision.

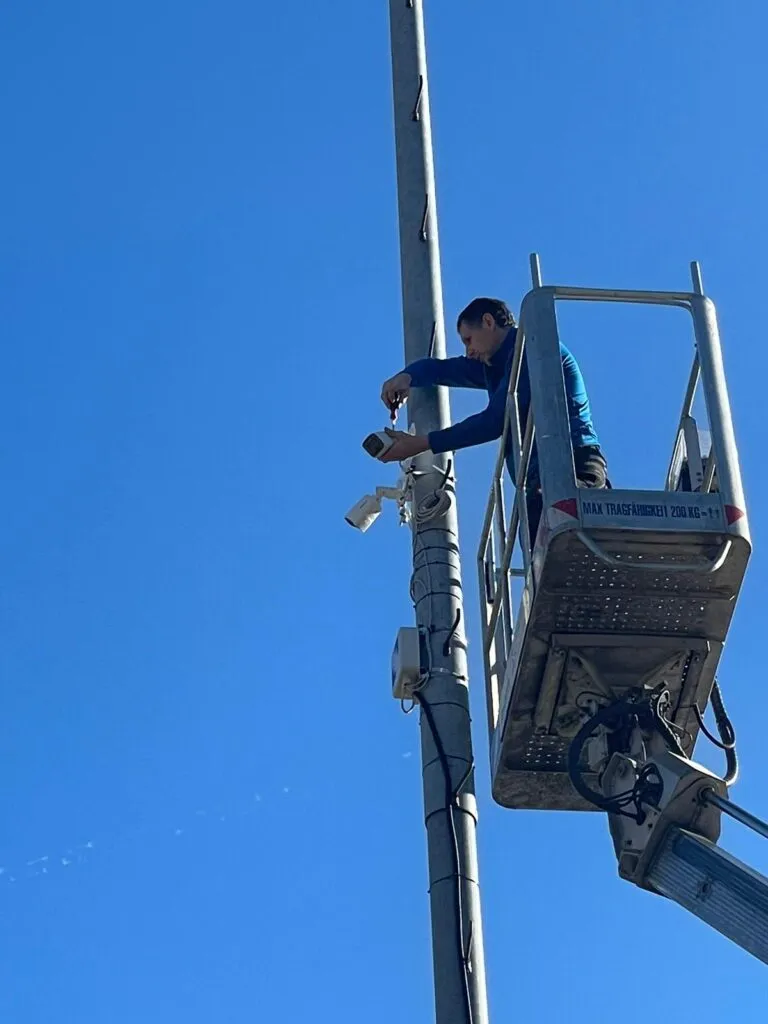

Setting up the camera and box

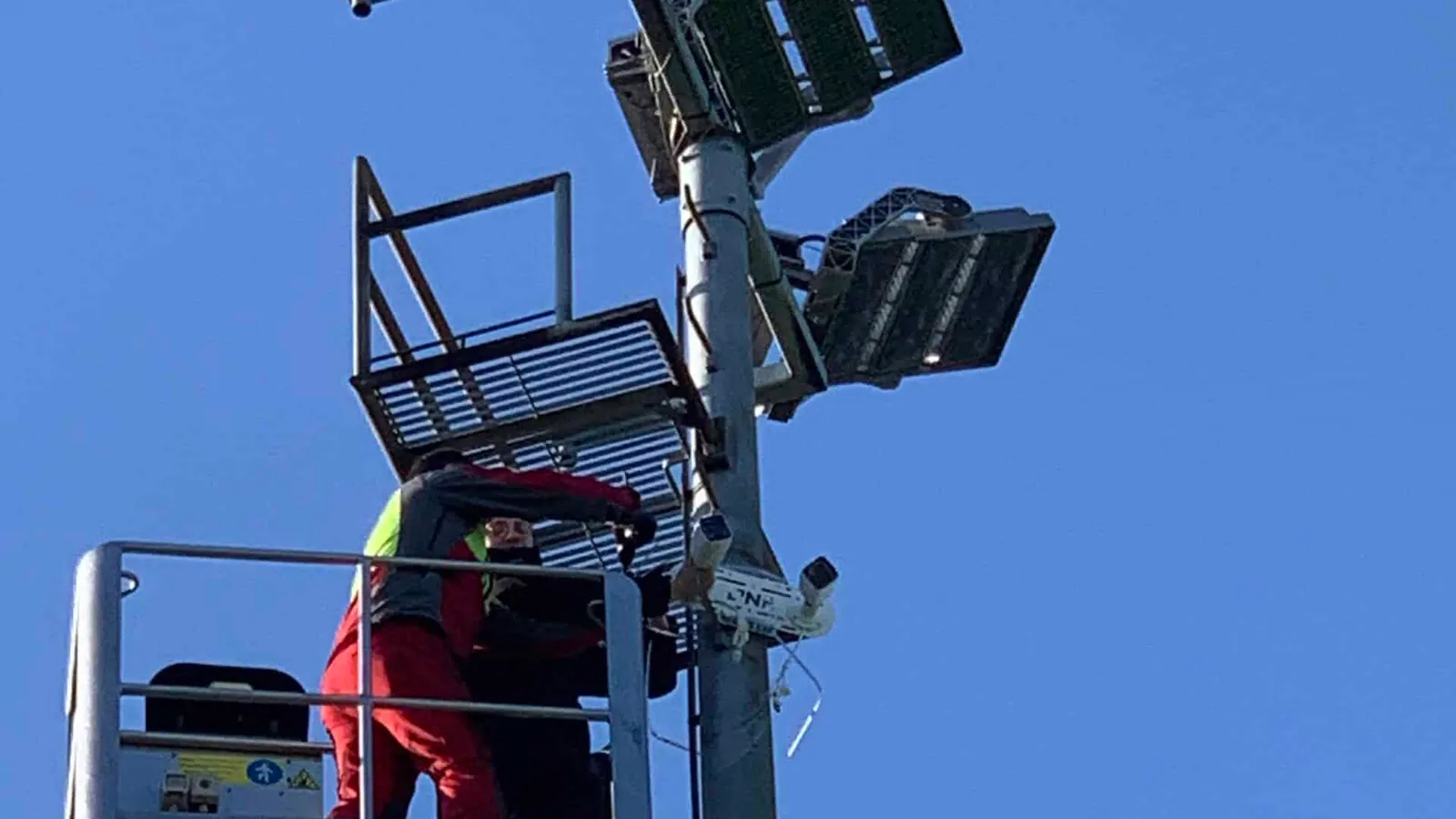

All essential tools for installation are conveniently included in the shipment. You’ll find a screwdriver (Torx), security cable, and installation guidance at your disposal. Depending on the mounting location, a ladder or an aerial work platform might also be necessary for certain elevated positions.

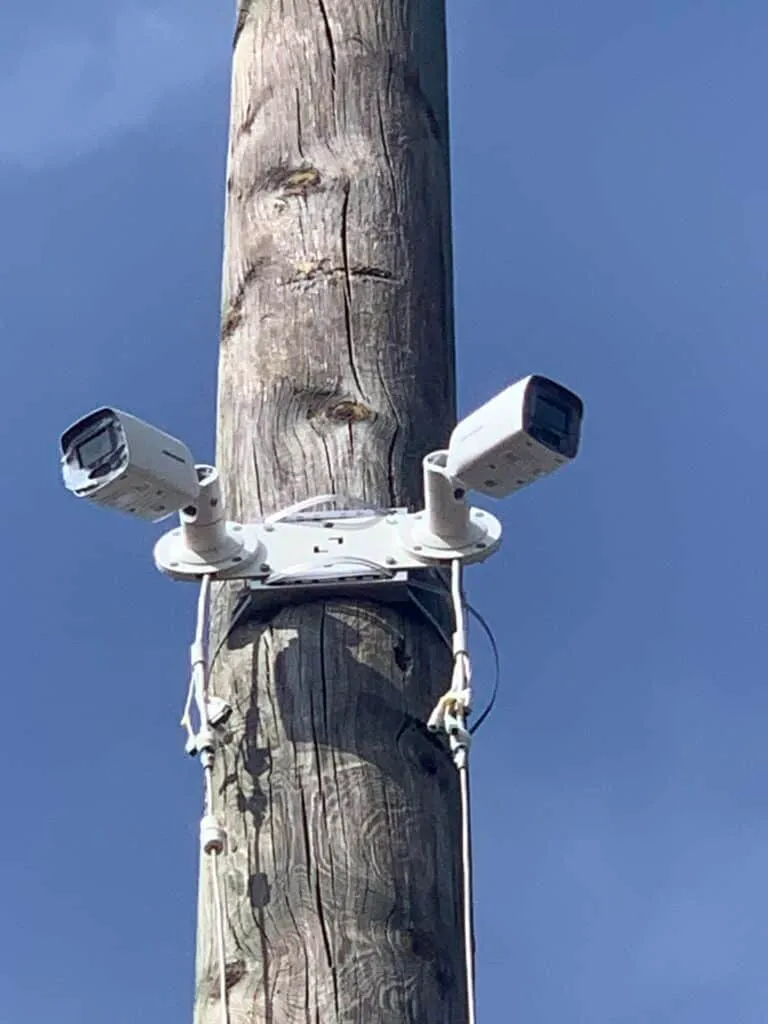

Your football camera will arrive pre-connected to a mounting plate, simplifying the process. Securely attach it to your chosen location, remembering to affix the provided security cable for additional stability and security.

Once you have securely mounted your camera, further fine-tuning of individual camera positions may be necessary. Our team will be able to remotely connect to your cameras and guide you through this process, guaranteeing optimal camera placement for a clear and comprehensive view of the entire pitch.

Connecting the cables

Proper cable connections are key to seamless operation. Two ethernet cables are provided in your shipment. One ethernet cable runs from each camera down to the box. Ensure a reliable power source nearby, as the cameras require a power cable of approximately 1.5 metres. This cable length will be tailored to your specific requirements. Remember to secure your cables with cable ties.

Final set-up

With the mounting process complete, you are nearly ready to use video analysis to elevate your team to success. Record your first match or session, and our team will perform a final calibration, ensuring everything is optimised to deliver the highest quality football recording.

zone14 empowers clubs to elevate their performance through unrivalled football video analysis. Trust in our expertise and cutting-edge technology to take your team to the next level.

Which camera systems exist and how they differ is covered in our comparison Football cameras compared 2026.
